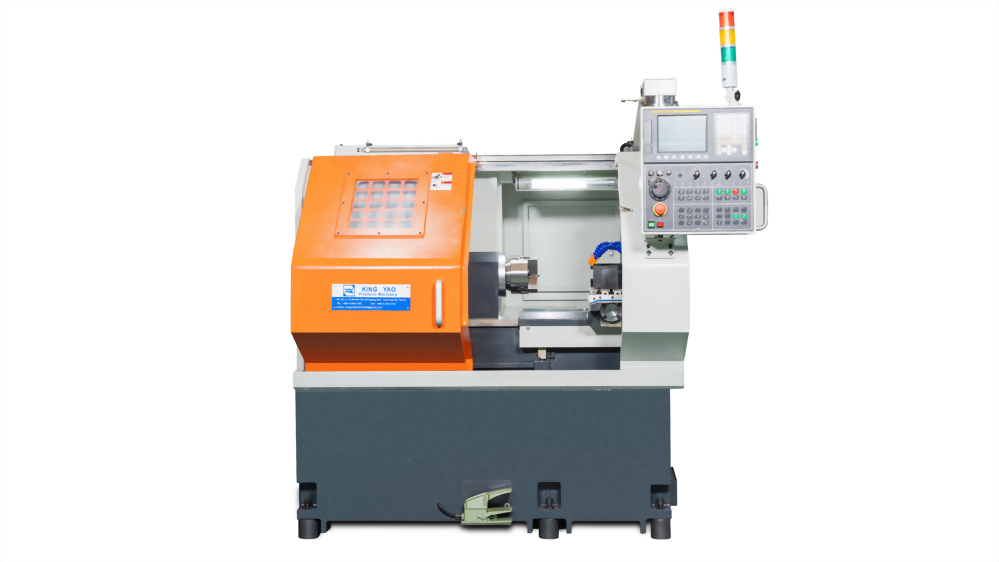

數控車床-L6
●機身鋼性強
●採用櫛式刀座設計
●多重加工能力
●採用櫛式刀座設計
●多重加工能力
型號 :
L6
依照使用需要自由搭配FANUC、Mitsubishi、SYNTEC控制器。
專為提高生產率而設計的 CNC 棒材加工自動車床。
可選配自動門式機械手、六軸伺服機械臂或自動送料機構， 實現無人化AI智能加工。
According to the needs of use, freely match FANUC, Mitsubishi, and SYNTEC controllers.
CNC bar processing automatic lathes designed for increased productivity.
It can be equipped with automatic door-type manipulator, six-axis servo robot arm or automatic feeding mechanism,Achieveunmanned AI intelligent processing.
|
規格Specification |
|||
|
項目Item |
|
KY-L6 |
KY-L6T |
|
容量 Capacity |
床面上直徑Swing over bed |
320mm |
|
|
標準加工直徑Standard turning diameter |
100mm |
||
|
標準加工長度Standard cutting length |
200mm |
||
|
移動量 Stroke |
X軸 X-axis |
450mm |
|
|
Z軸 Z-axis |
345mm |
||
|
主軸 Spindle |
轉速Speed |
20-4000 |
|
|
主軸鼻端Spindle nose |
A2-5 |
||
|
棒材容量Bar Capacity |
45mm |
||
|
刀具台 Toolholder |
型式Type |
櫛式固定式 Gang bed fixed on cross slide |
V8伺服刀塔 V8 Servo turret
|
|
外徑切削工具OD tool shank |
□20mm |
□16mm |
|
|
內徑切削工具ID tool shank(Max.) |
Ø32mm |
Ø20mm |
|
|
進給速度 Feed traverse |
X軸 X-axis |
15m/min |
|
|
Z軸 Z-axis |
15m/min |
||
|
馬達Motor |
主軸馬達(30分) Spindle motor(30mins) |
15HP/11KW |
|
|
進給軸馬達Servo motor |
1.6HP/1.2KW |
||
|
油壓單元馬達Hydraulic unit motor |
1HP/0.75KW |
||
|
切削液馬達Coolant pump motor |
1/2HP/0.37KW |
||
|
機械尺寸 Machine dimension |
機械高度Height |
1900mm |
|
|
占地面積Floor space |
2000x2500mm |
||
|
機械重量Weight |
2600kg |
2680kg |
|
鋼性強：高鋼性鑄造床身，吸收高速旋轉和快速定位產生之震動，使重切削更具有鋼性及穩定性。
採用櫛式刀座設計：有效節省換刀時間並提高加工速度，加工件少量多樣時，將節省時間人力成本。
豐富的加工能力：機械本身亦可搭配伺服動力系統，可提供銑邊、攻牙、鑽孔、剖邊等。
1. Rigid ：High rigid cast machine bed, absorbing the vibration caused by high speed rotation and rapid traverse, perform stability when turning heavy duty lathe work.
2. Gang Type Tooling System：Gang type tooling provides fast tool changes for short cycle times, processing speed is faster. Suitable for high production or rapid prototyping of small, precision parts.
3. Turret can be chosen as optional：It also works with a servo power tool system, capable of edge milling, tapping, drilling, slitting, etc.
